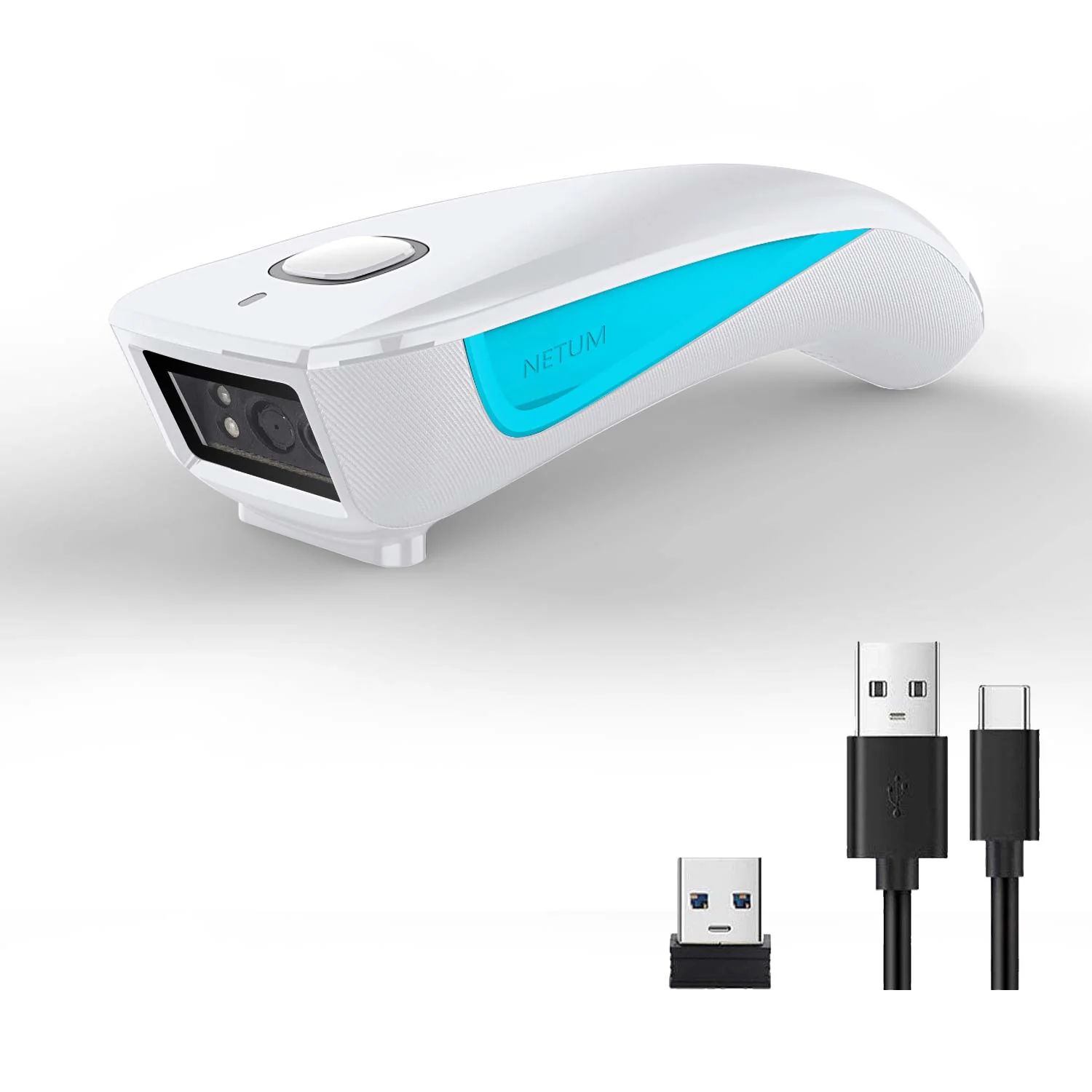

C850 2D Wireless Barcode Scanner



Bluetooth Wireless Technology
Connect the scanner to your iOS/Android device with ease and enjoy scanning barcodes wirelessly up to 30 feet away.

Portable Pocket Size Design
Weighing at less than 3 ounces, the NETUM C850 is extremely light weight and portable, making it easily the perfect scanning solution wherever you go.

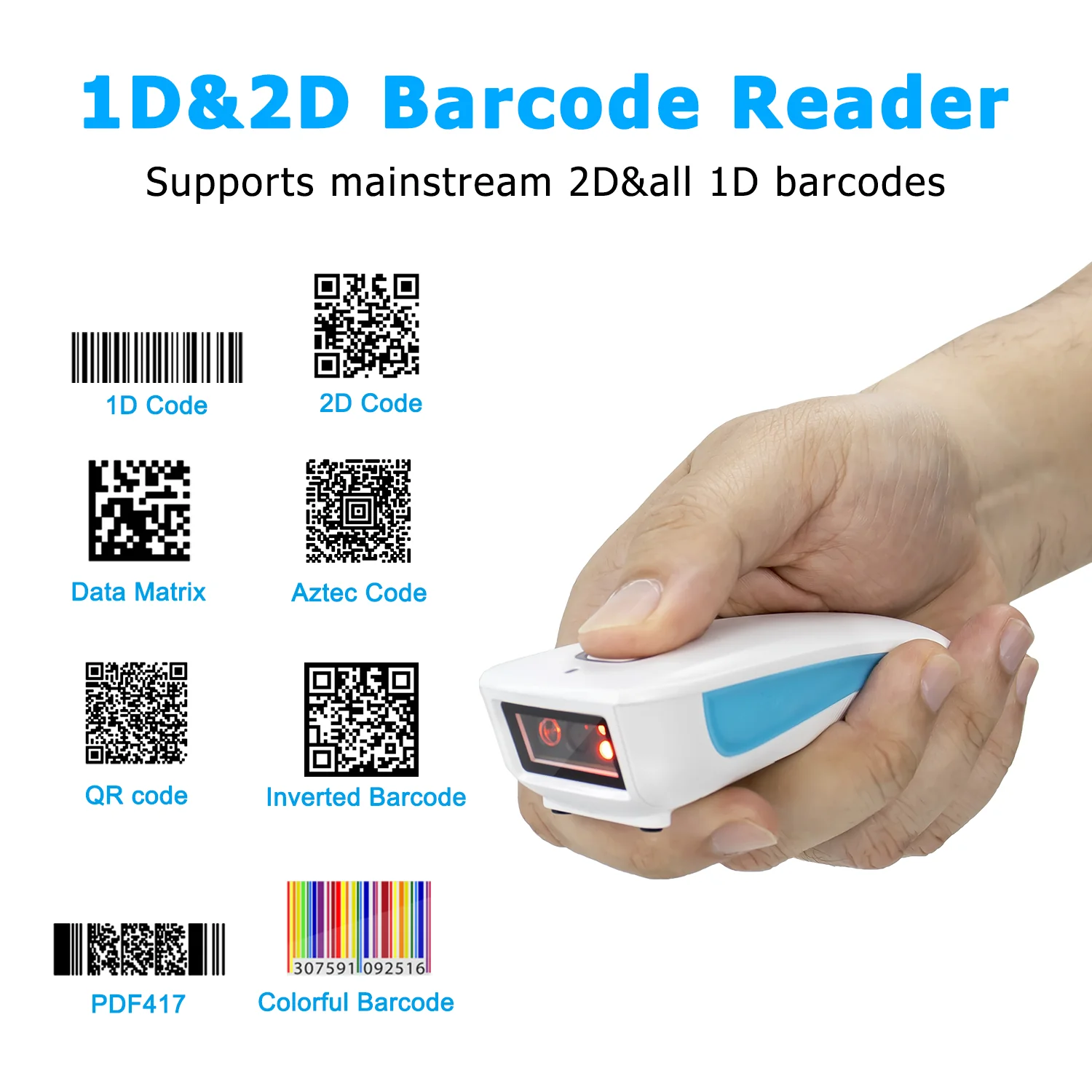

2D Scanning Engine
The 2D scanning engine offers decoding capability for 2D barcodes like PDF417, Data Matrix, QR Code, Micro QR as well as common 1D barcodes.

Antimicrobial
The NETUM C850 is made with antimicrobial material which prevents the growth of harmful bacteria and protects against the buildup germs between washings. Water resistant design for use in all industries, including health care and food service.

Superior Scanning Performance - 200 scans per second scan rate and innovative high pixels COMS engine offers fast and accurate scanning results.

Supported 2D Symbologies
DataMatrix QR Code Micro QR Code PDF417

Supported 1D Symbologies

•Code 11 • Code 25 • Codabar • Code 39 / Full ASCII • Code 93 • Code 128 • Code 32 • DataBar14 • EAN 128 • EAN 8 &13

• GS1 DataBars (Omnidirectional, Stacked Omnidirectional, Expanded, Expanded Stacked, Stacked, Limited, Truncated) • Industrial 2 of 5 • Interleave 2 of 5 • ITF/Matrix/Industrial/Standard), ITF 6/14 • ISSN / ISBN • MSI • Plessey • Standard Code 39 • TELEPEN • UPC A & E

Specifications:

• Imager: 640 x 480 CMOS
• Light Source: 650 ± 10 nm visible red LED & White
• Depth of Field: 0-12 inches (@20mil EAN-13, PC 100%)
• Scan Angle: Roll: ±360°, Pitch: ±45°, Yaw: ±40°
• Motion Tolerance: 24 inches per second (IPS)
• Minimum Bar Width (1D): 5 mil/0.127 mm @ PCS 90%, Code 39
• Minimum Bar Width (2D): 10 mil/0.254 mm @ PCS 80%, Data Matrix.
• Print Contrast: PCS 30% EAN13 @10mil
• Wireless Range: 10m / 30 ft.

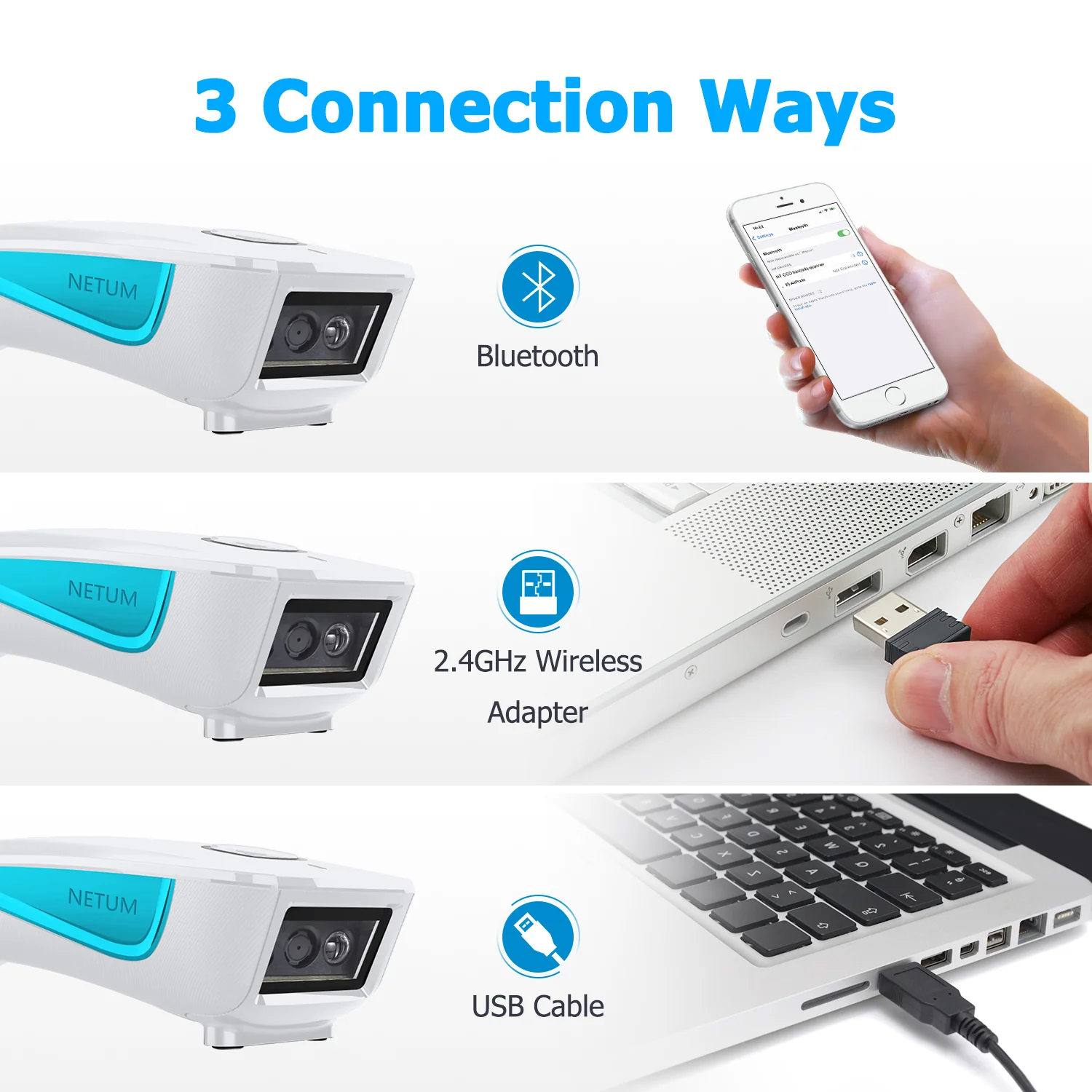

• Communication: 2.4G Wireless and Bluetooth 4.0 Compliant
• Indicators (LED): Green/Blue/Orange
• Alert Operation: Programmable Beeper Tone
• Input Voltage: 3.3 ± 5% VDC
• Operating Current: 132 ± 13mA (at maximum)

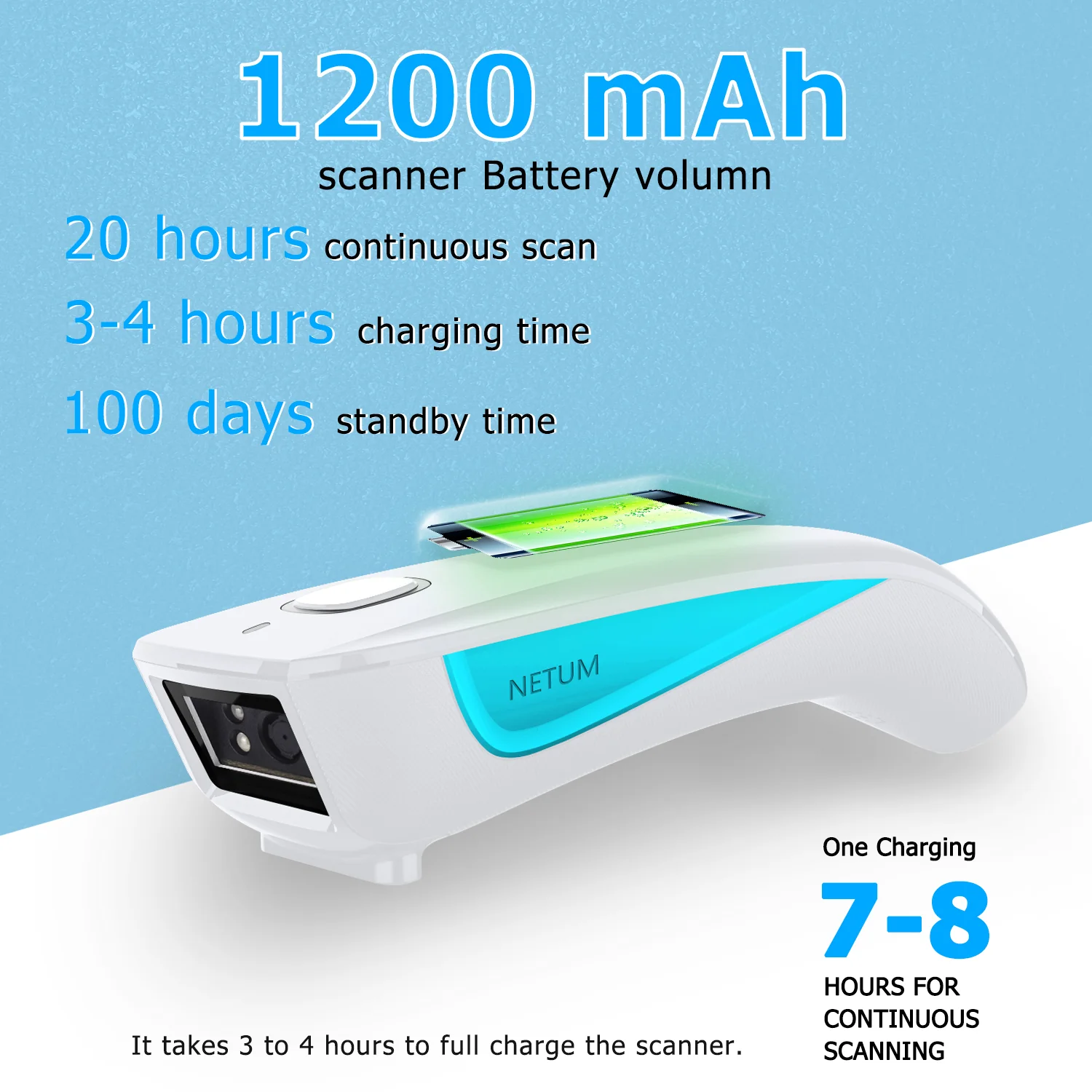

• Battery Capacity: Lithium Ion Battery Rated at 1200mAH

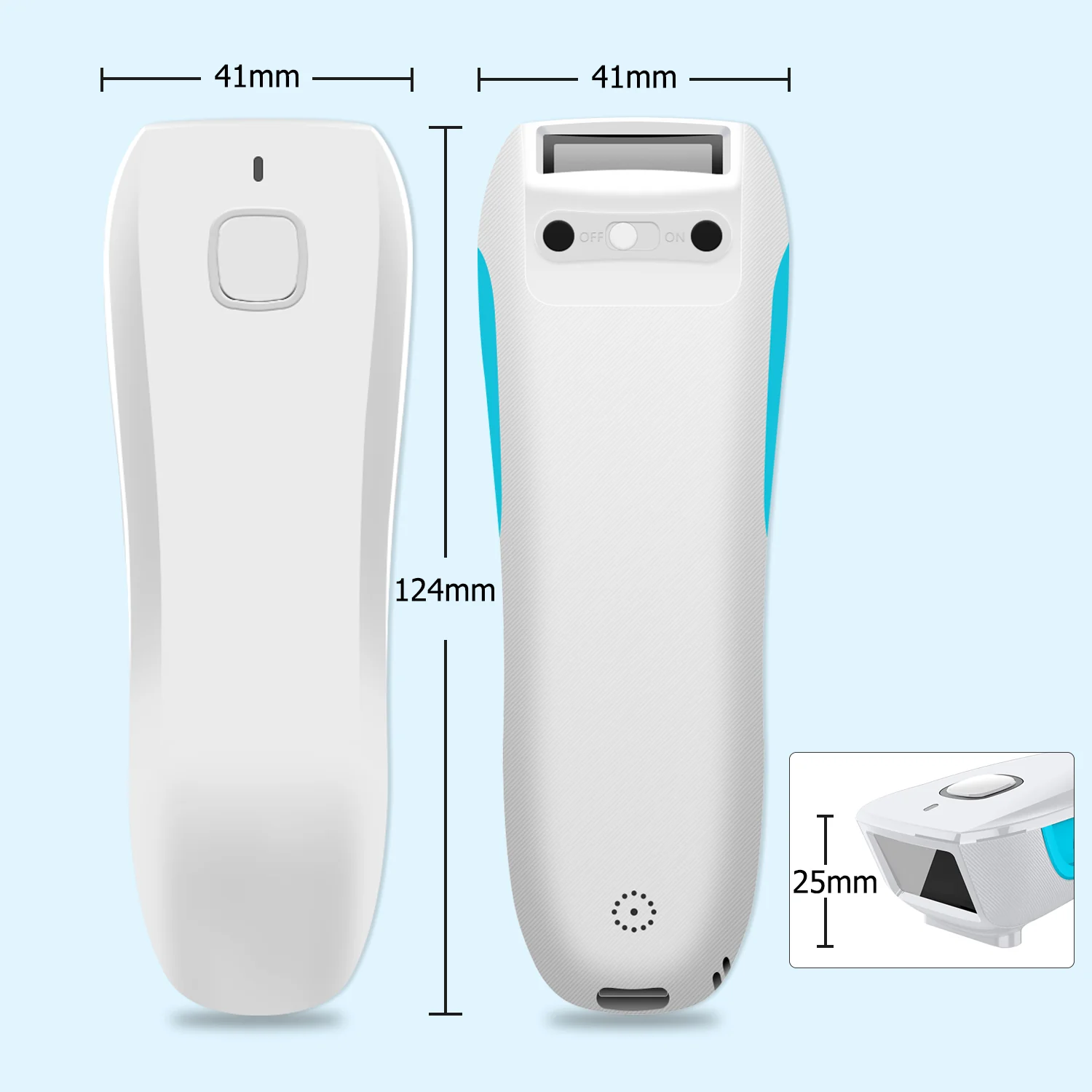

• Dimensions: 4.21 (L) x 1.89 (W) x 1.0 (H) in. (107 x 48 x 25 mm)
• Weight: 2.96 oz. (84 grams, excluding cable)
• Cable: 3’ 4” (1 meter)
• Shock: Withstanding 1.5m freefall drops
