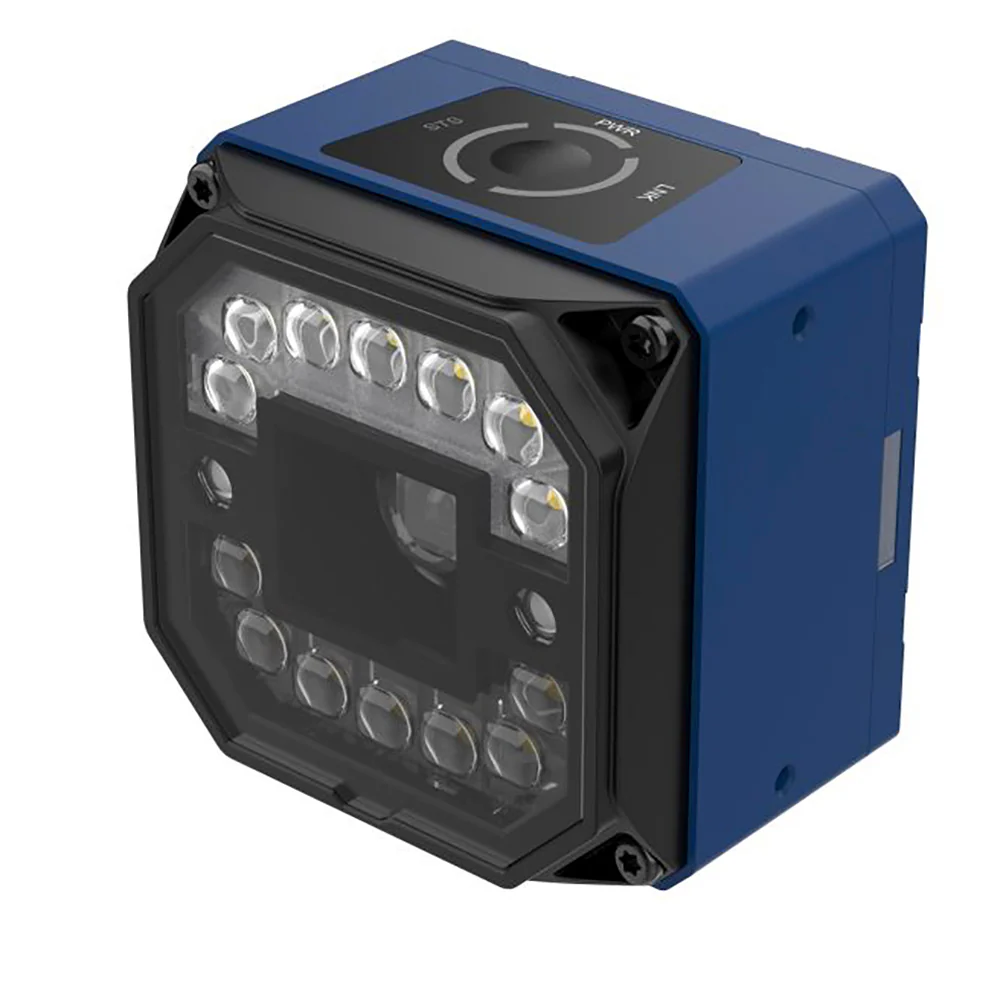

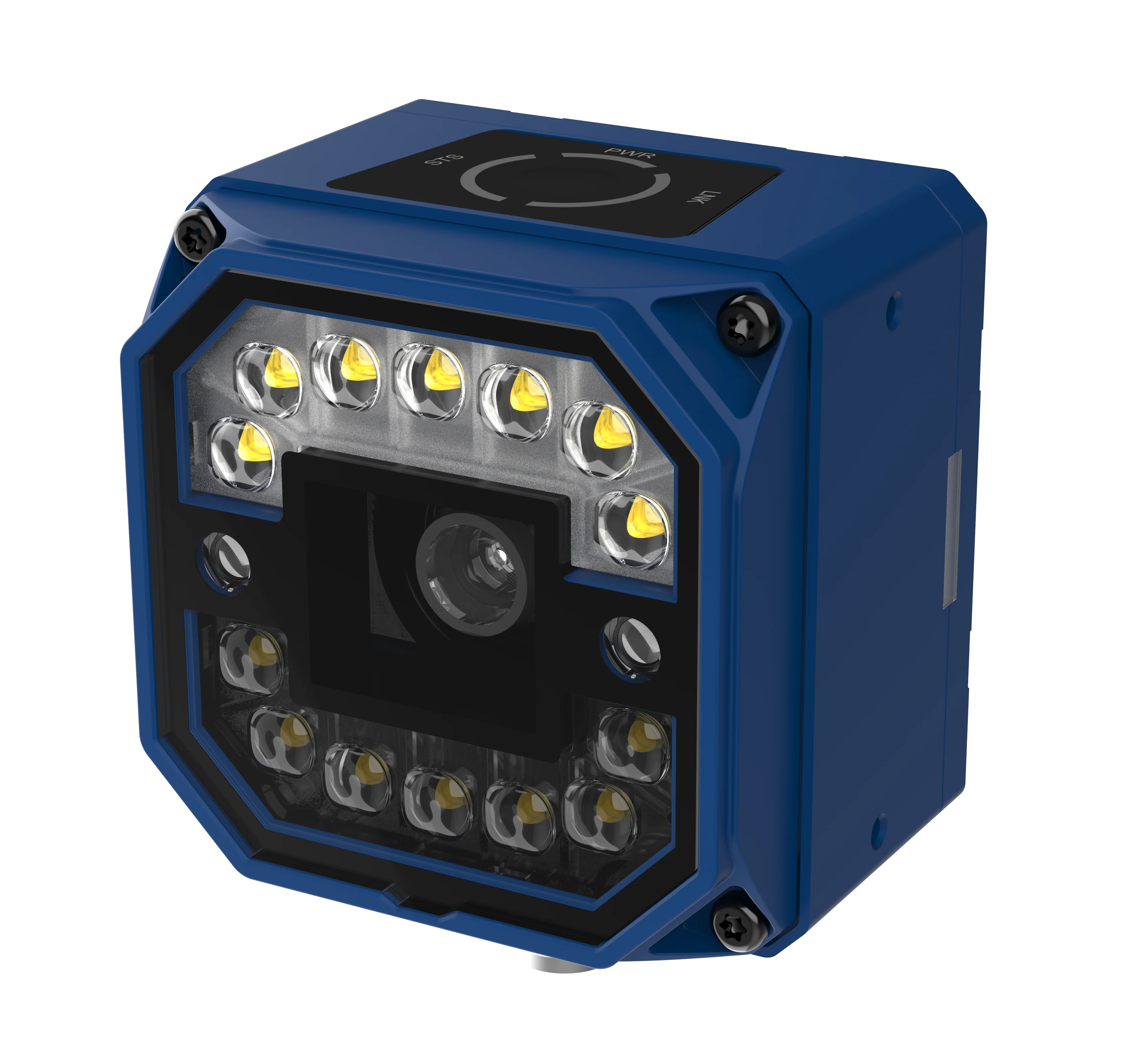

NTF-316/350 Fixed Mount Barcode Scanner

NETUM Industrial Fixed 2D Image Barcode Scanner

Model：NTF-316	Model：NTF-350
Resolution: 1280 X 1024	Resolution: 2368 X 1760
Decode Capabilities:	Decode Capabilities:
1D:	1D:
Code 39, Code 93, Code 128, Codabar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, Code 11 and Industrial 25	Code 39, Code 93, Code 128, Codabar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, Code 11 and Industrial 25
2D:	2D:
PDF 417, Data Matrix, QR Code	PDF 417, Data Matrix, QR Code
Max. Frame Rate: 60 fps	Max. Frame Rate: 30 fps
Max. Reading Speed: 84 codes/sec	Max. Reading Speed: 60 codes/sec
Sensor Type: CMOS, global shutter	Sensor Type: CMOS, global shutter
Pixel Size: 4 µm x 4 µm	Pixel Size: 3.2 µm x 3.2 µm
Sensor Size: 1/2.7”	Sensor Size: 1/1.7”
Exposure Time: 35 µs to 1 sec	Exposure Time: 60 µs to 1 sec
Gain: 0 dB to 15 dB	Gain: 0 dB to 18 dB
Mono/Color: Mono	Mono/Color: Mono
Communication Protocol:	Communication Protocol:
SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP	SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP
Electrical Feature:	Electrical Feature:
Data Interface: Fast Ethernet	Data Interface: Fast Ethernet
Digital I/O:	Digital I/O:
17-pin M12 connector provides power and I/O, including non-isolated input (Lineln 0/1/2) x 3, non-isolated output (LineOut 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported.	17-pin M12 connector provides power and I/O, including non-isolated input (Lineln 0/1/2) x 3, non-isolated output (LineOut 0/1/2) x 3, RS-232 input x 1, RS-232 output x 1. Device trigger via pressing button on top supported.
Power Supply: 24 VDC	Power Supply: 24 VDC
Max. Power Consumption:	Max. Power Consumption:
Approx. 20 W@24 VDC (light source enabled)	Approx. 47.5 W@24 VDC (light source enabled)
User Environment	User Environment
Lens Mount:	Lens Mount:
M12-mount, mechanical autofocus supported.	M12-mount, mechanical autofocus supported.
Lens Cap:	Lens Cap:
Half polarized front cover by default. Polarized and transparent ones are optional.	Half polarized front cover by default. Polarized and transparent ones are optional.
Light Source: White light	Light Source: White light
Indicator:	Indicator:
Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)	Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
Dimension:	Dimension:
65.2 mm x 65.2 mm x 47 mm (2.6” x 2.6” x 1.9”)	65.2 mm x 65.2 mm x 47 mm (2.6” x 2.6” x 1.9”)
Weight: Approx. 280 g (0.6 lb.)	Weight: Approx. 280 g (0.6 lb.)
Seal: IP67	Seal: IP67
Operating Temp: 0℃~+50℃	Operating Temp: 0℃~+50℃
Storage Temp: -30℃~+70℃	Storage Temp: -30℃~+70℃
Humidity: 20% to 95% RH, non-condensing	Humidity: 20% to 95% RH, non-condensing
